Marking Robot

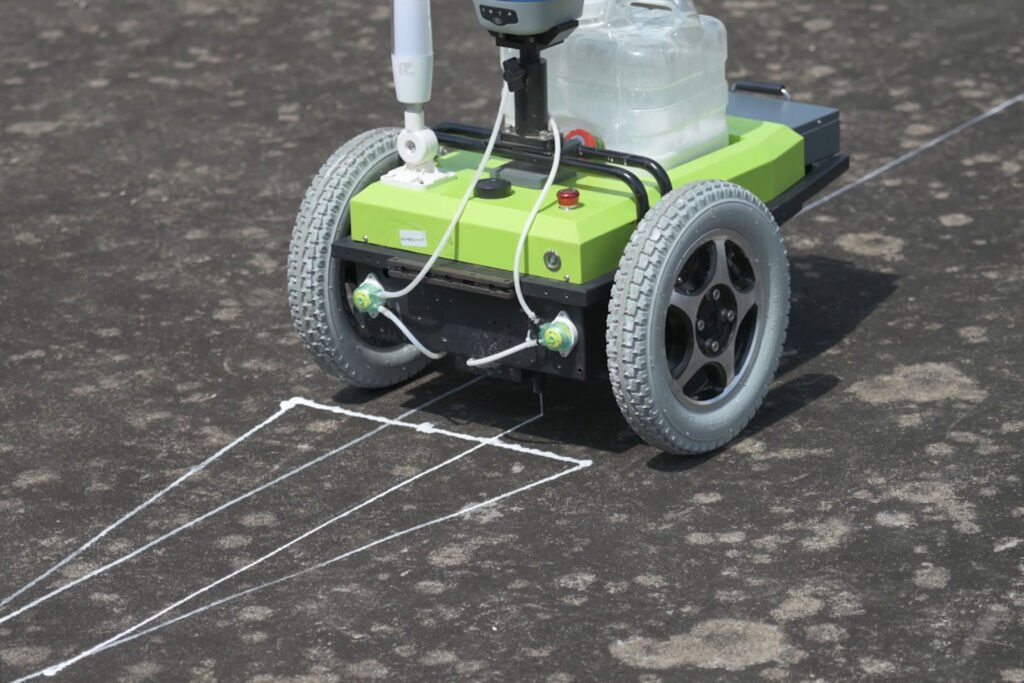

Sports Field Marking Robot
An auxiliary work robot capable of automatically measuring, marking, and drawing lines. Sports fields, Highways, Municipal roads, Airport runways…
System Architecture
Import design files

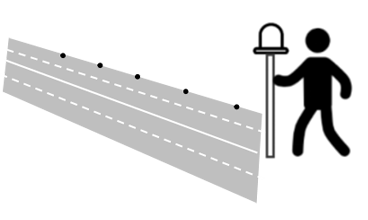

Manual point collect via RTK

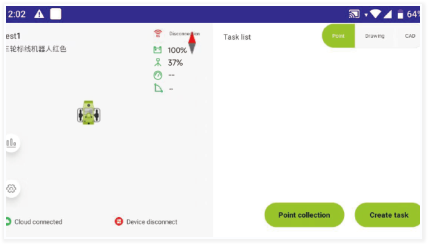

Select standard model on tablet
Algorithm
Decrypt, Calculation
Task scheduling, Route planning, Measuring and Locating
Automatic marking, drawing
Task recording and report
Project management, progress, statistics, review, etc
Results
Application Area

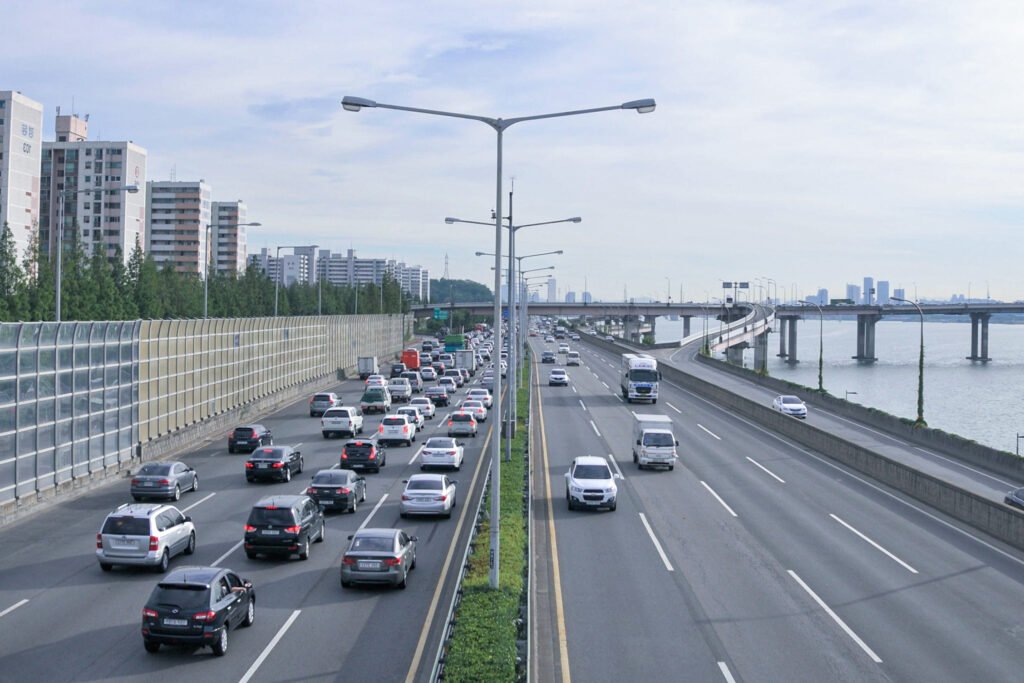

Highway

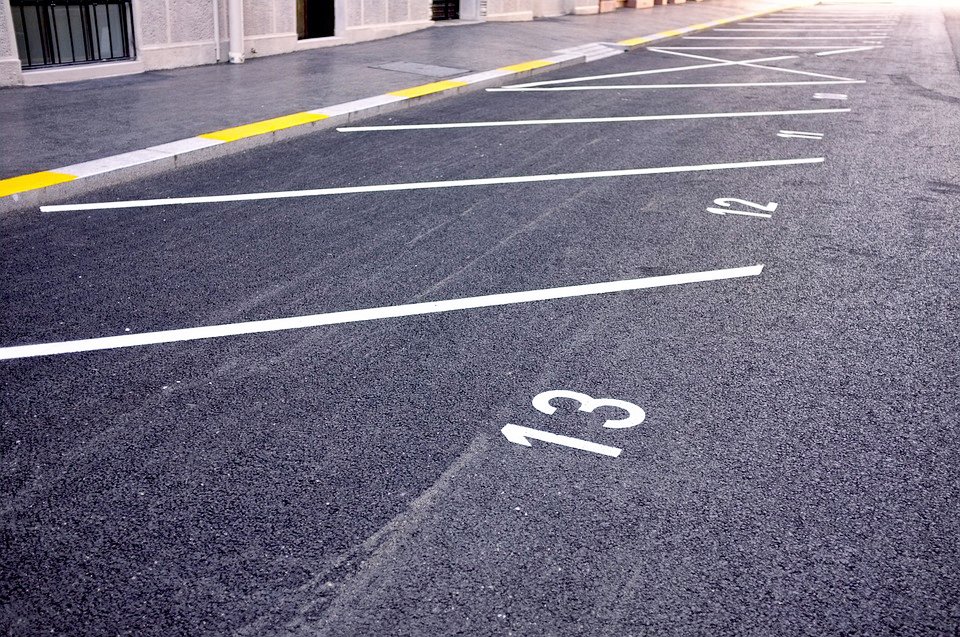

Parking lot

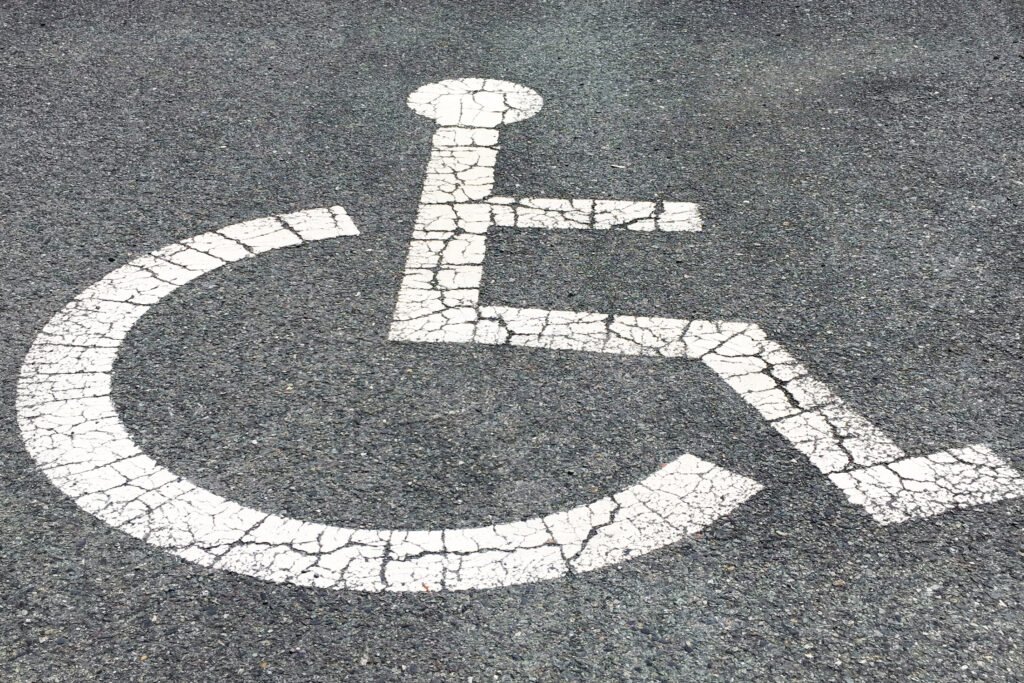

Special marking

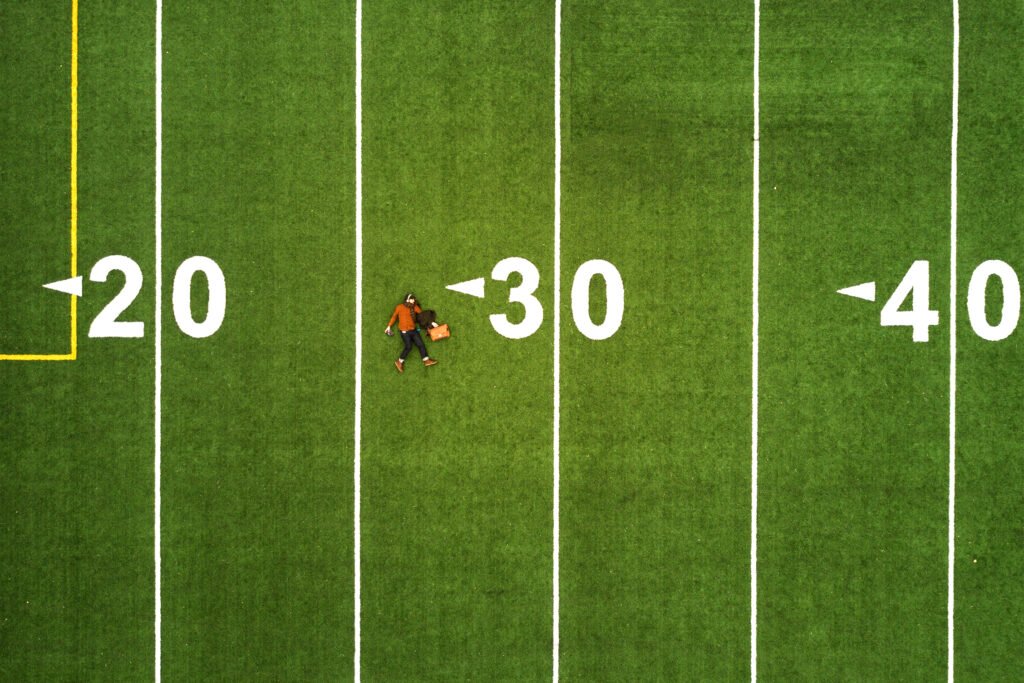

Sport fields

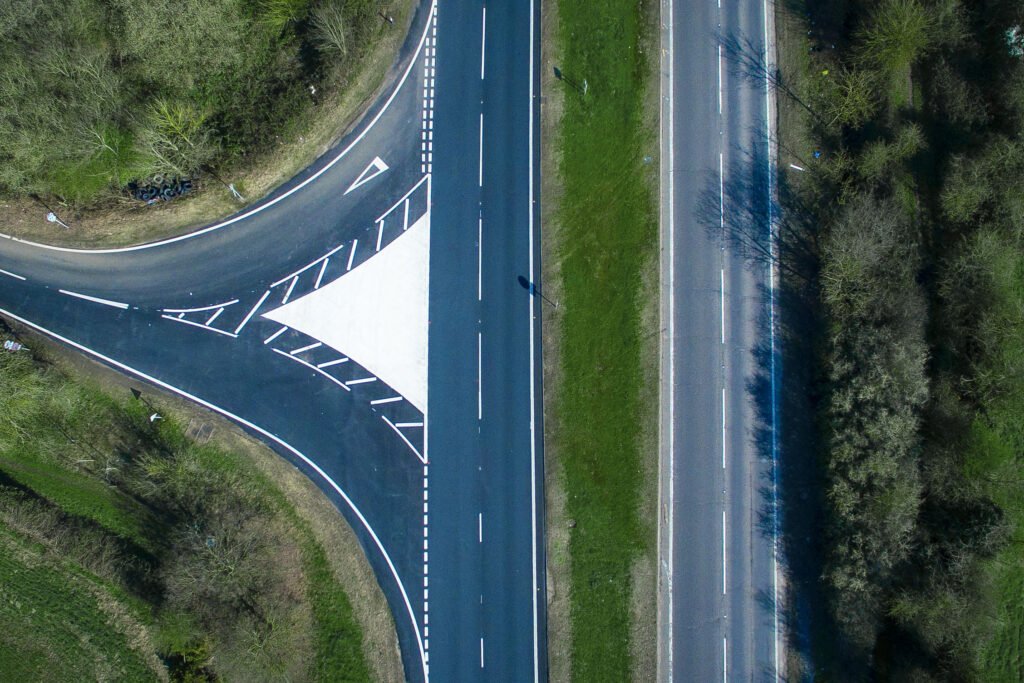

Municipal road
Agriculture

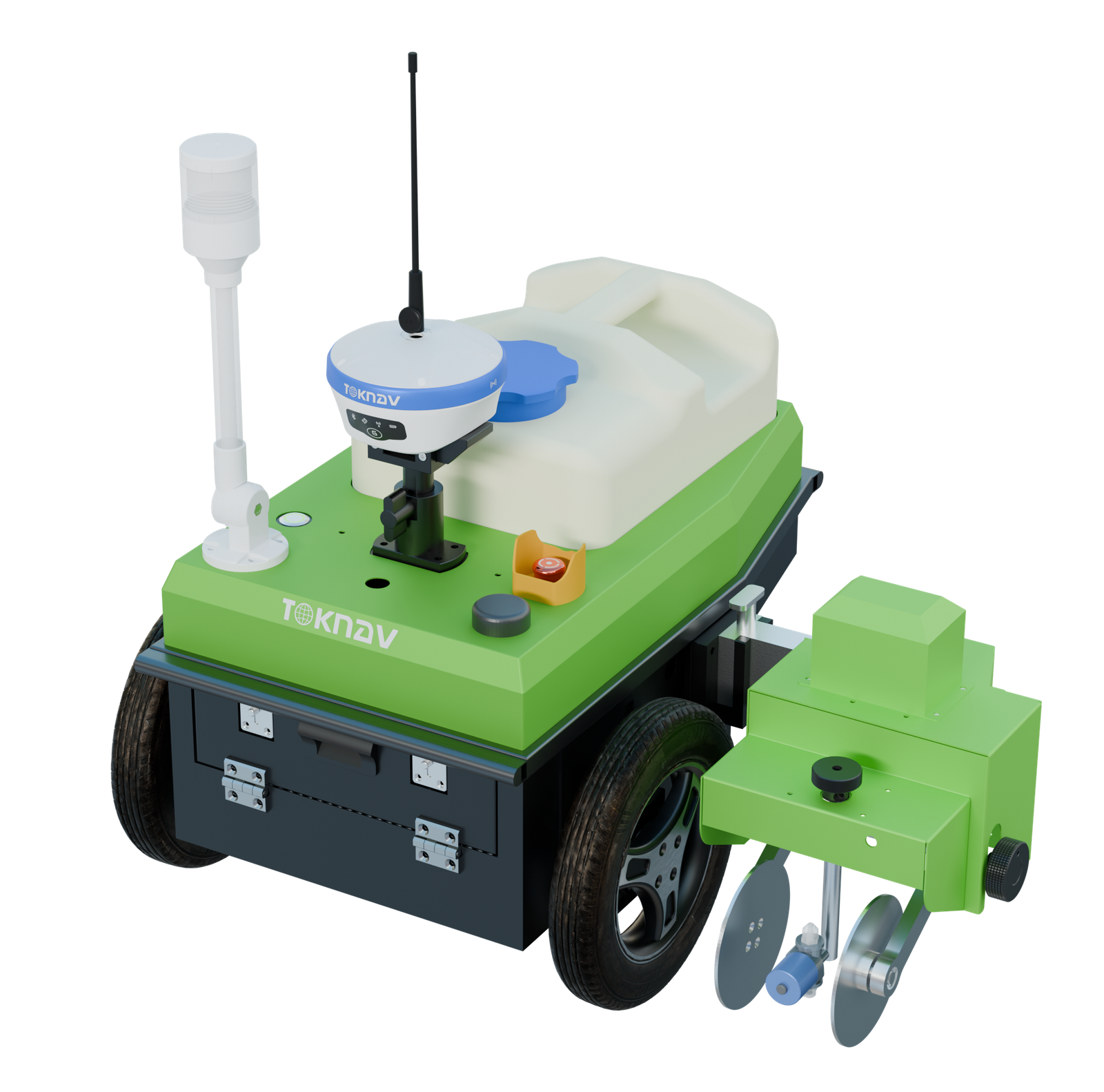

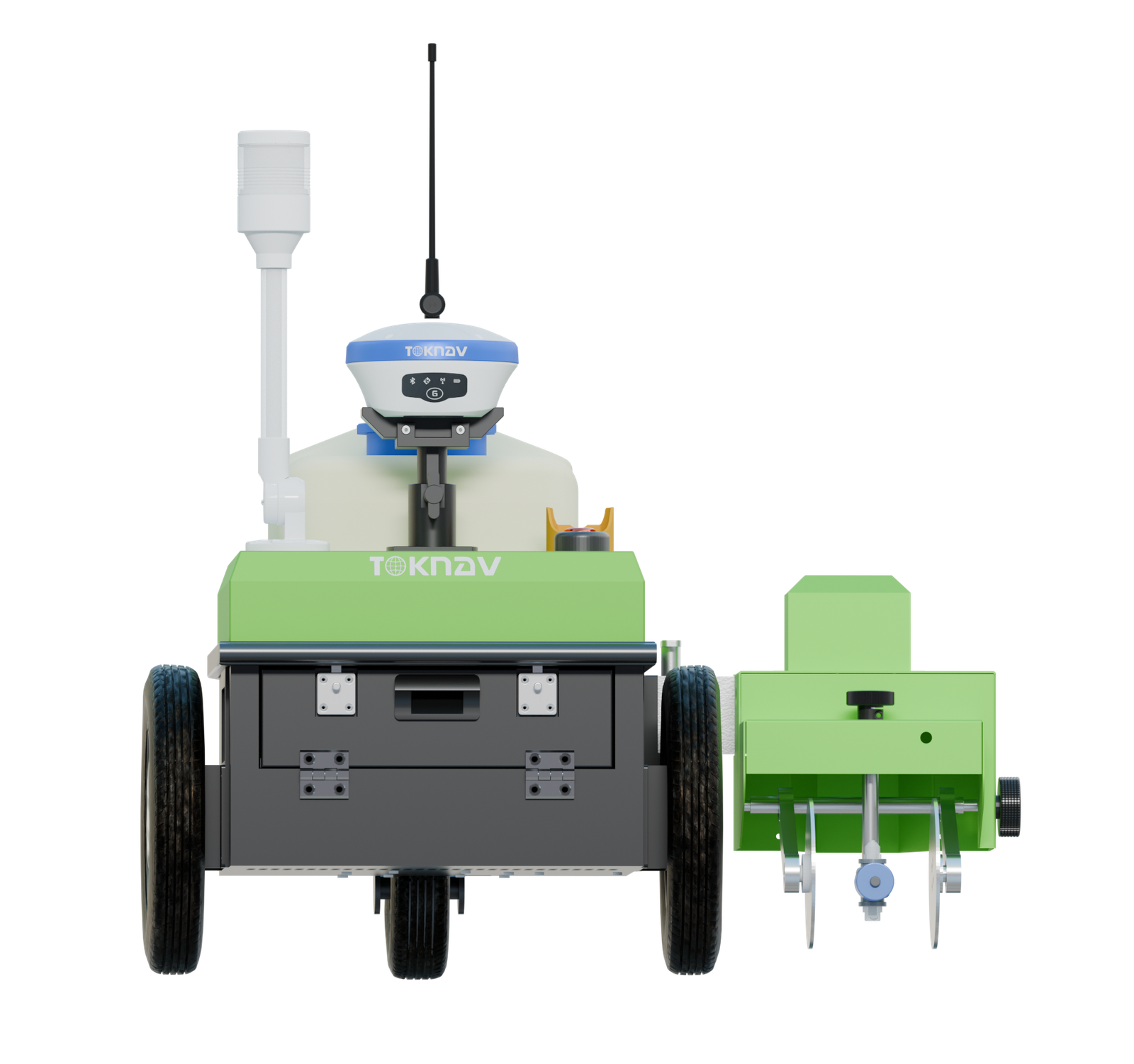

System Architecture
Physical
Dimensions(L*W*H):
Wheelbase:
Wheel Track:
Weight:
Hopper capacity:
692mm*952mm*649mm
400mm
465mm
36kg
10L
Battery
Battery type:
Battery Life:
Endurance:
24V/20Ah
8h
28.8km
Environment
Communication:
Operating temperature:
Storage temperature:
IP rating:
CAN
-10°C~60°C
-10°C~45°C
IP3X
Mobility
Motor specification:
Maximum speed(m/s):
Minimum turning radius:
Slope:
200W*2
1m/s
0°(In-place steering)
20°
Field Marking
Speed:
Sport field types:
Motor specification:
1m/s
Hub motor 200W*2
Running track, tennis court, soccer field, football field, lacrosse court, baseball field
Pre-Marking
Speed:
2.6km/h
Material:
Latex paint/Titanium white slurry
Accuracy:
less than 1.5cm
Line types:
Dots, lines, curves, numbers, letters, patterns
